External Waterproofing Solutions, Systems & Basements
Externally applied Waterproofing systems for use below ground are favoured by many specifiers. External Waterproofing systems have many advantages, primary of which is excluding/managing free water to prevent entry into the building. Ease of installation during the construction phase and the reduction in detailing can also present significant advantages. There are however disadvantages that must be considered and these can often be the deciding factor in which type of Waterproofing system we recommend.
There are numerous types of external systems to choose from, each requiring careful design and installation. Selection of which type of system to employ depends on multiple factors including geotechnical information, assessment and classification of the existing water table, type of structure to which the Waterproofing system is being applied and the provision and effect of external drainage.

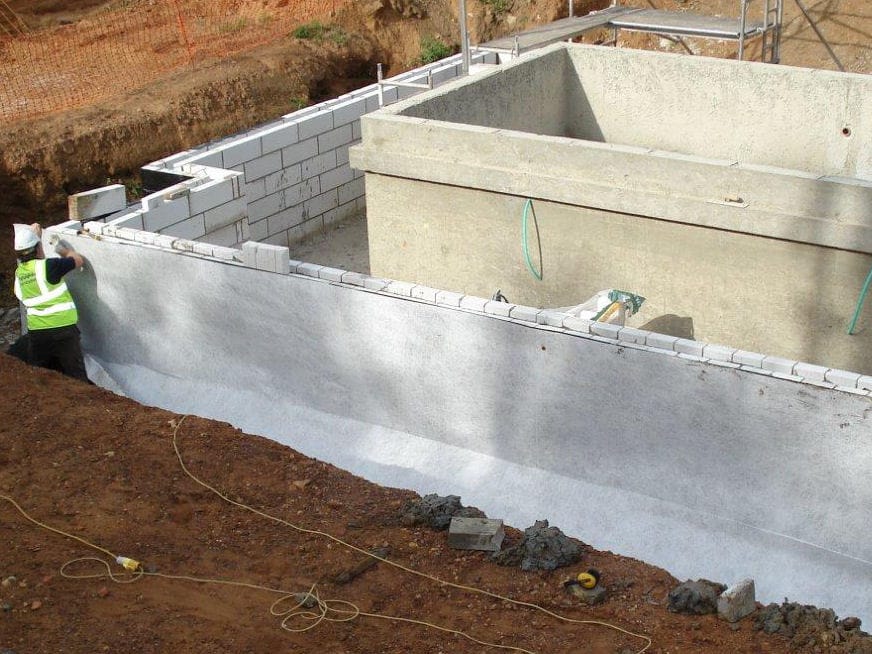

Protectahome Technicians Installing Pre Applied Waterproofing System using Newton Hydrobond (Type A Barrier Protection).
Protectahome Technician Installing Newton Geodrain (Type C Drained Protection) over Spray Applied Liquid Membrane (Type A Barrier Protection).

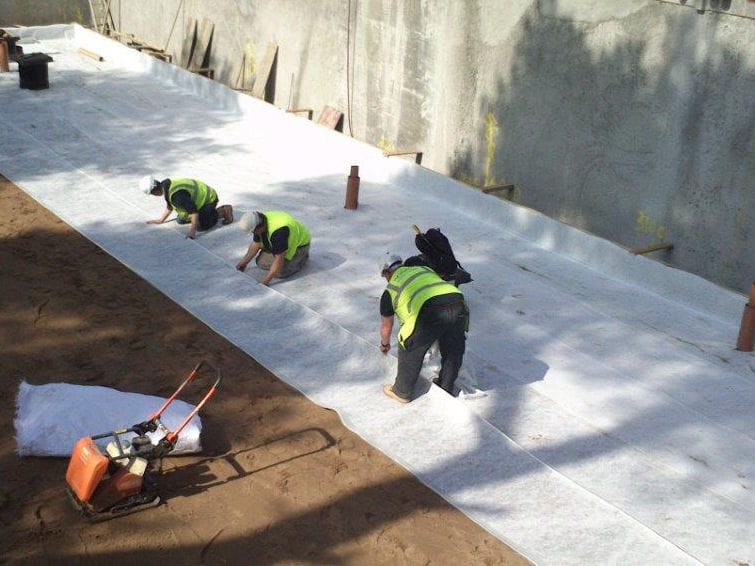

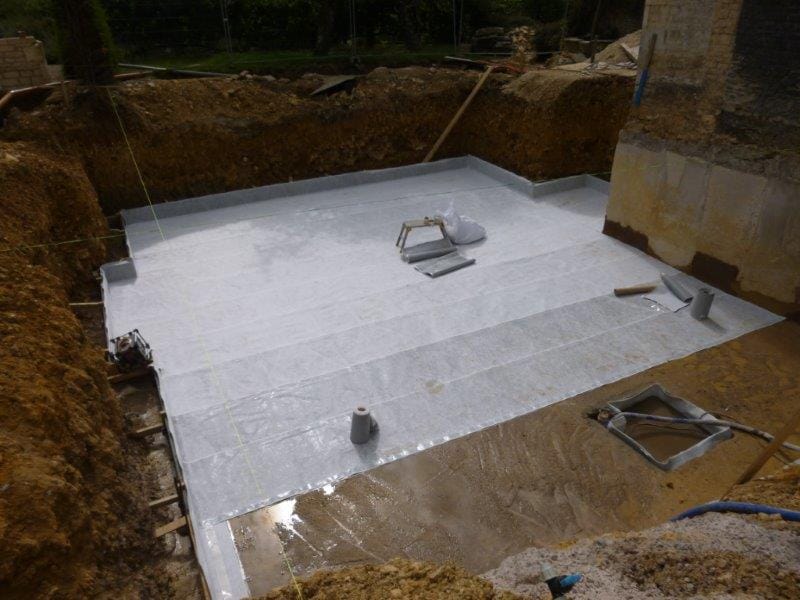

Pre Applied Waterproofing System in progress using Newton Hydrobond (Type A Barrier Protection).

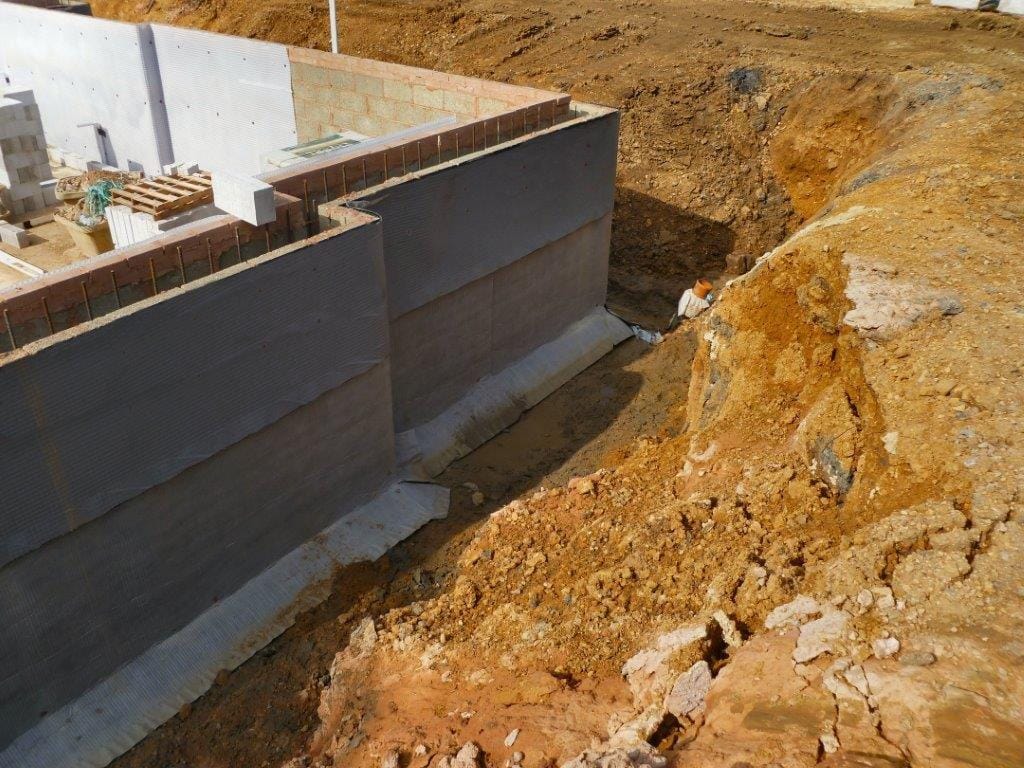

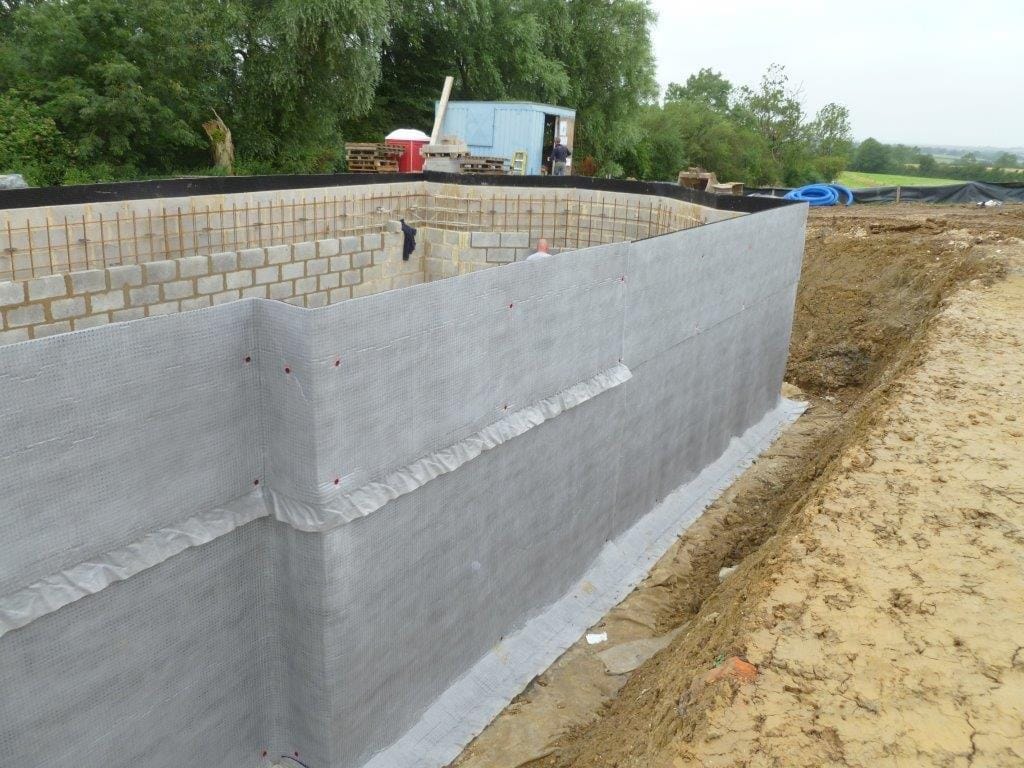

Externally Applied Membrane, Newton Geodrain, Installed as Type C (Drained) Protection.
Combined Waterproofing Installation using both Newton Geodrain Externally and Newton Cavity Drain Membrane Internally.

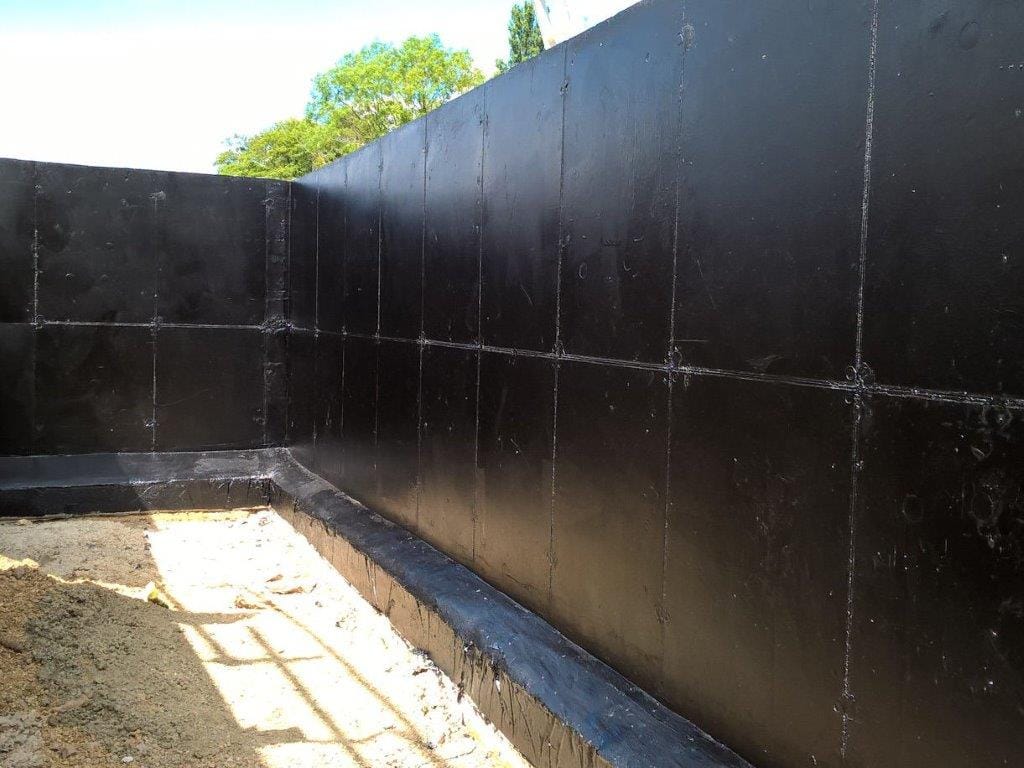

External Type A (Barrier) Protection - Newton 109 Liquid Membrane

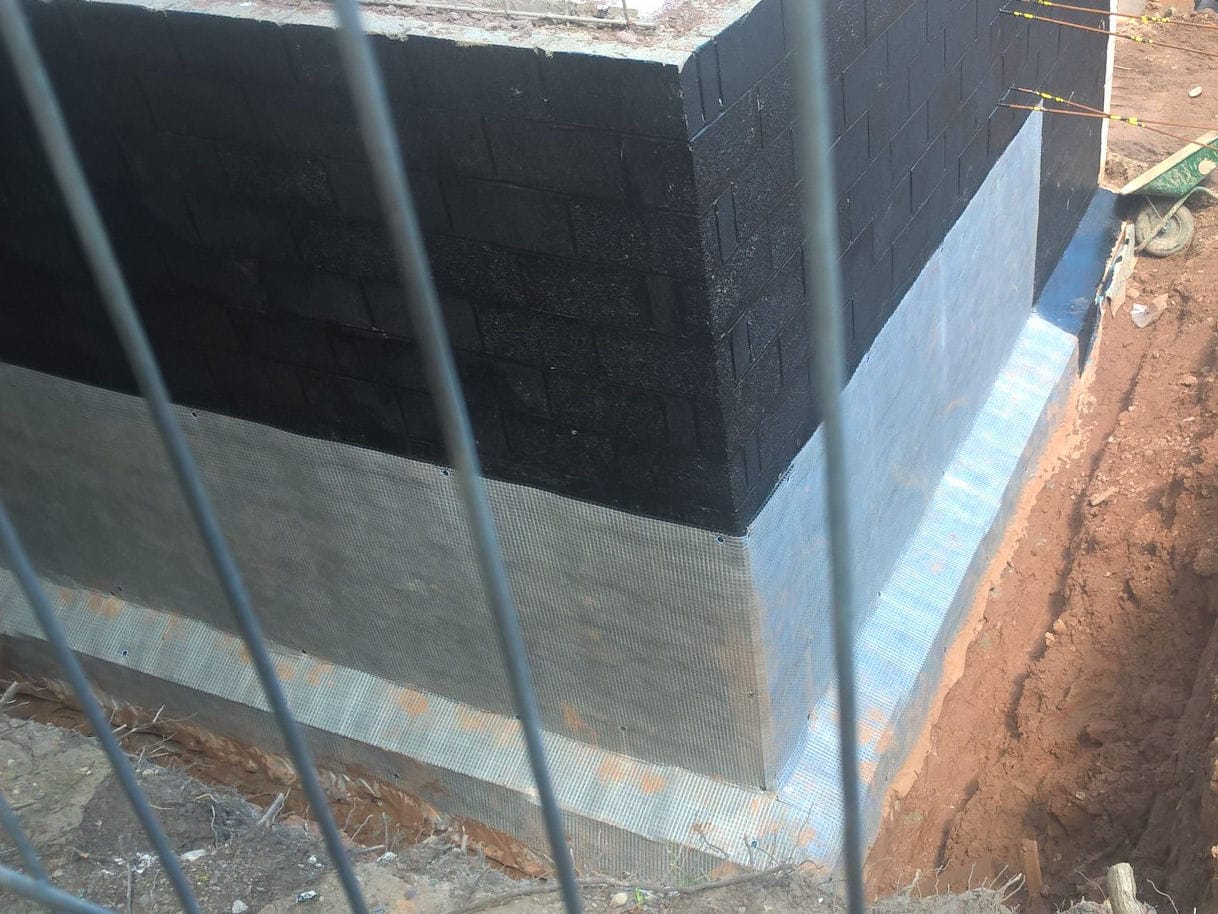

External Type A (Barrier) and Type C (Drained) Protection - Liquid Membrane and Drainage Layer Installation Underway.
External Waterproofing Design Specialists
Externally applied Waterproofing is not a one system, one product fits all process. The Waterproofing Specialist should consider a range of factors in the design. These include: Topography, Ground Conditions and the suitability of the structure to accept the waterproofing system. The specialist should also allow in the design for the provision of maintainable external drainage and the protection of the installed system.
Protectahome have extensive experience of installing external Waterproofing systems and we would be pleased to provide our expert advice and recommendations, as qualified Waterproofing Specialists for your project.
Protectahome have offices in Bristol, Bromsgrove, Cardiff, Cheltenham, Leamington Spa, Llanelli, London, Newport, Plymouth and Stockport so you will never be too far away from a Protectahome Surveyor. For more information on the Waterproofing systems designed and installed by Protectahome and associated services we provide, please see our Case Studies page.
For advice or to discuss your project please Contact Us on 0800 055 6966 or alternatively email us via firstname.lastname@example.org.
Waterproofing Case Studies
The Project: Refurbishment of a 900,000 sq. ft. Wilkinson’s warehouse and distribution centre. The refurbishment included necessary tanking works to several conveyor belt and lift pit areas.
Waterproofing Project: Construction of a new plant area to house the installation of over £3.5m worth of permanent generators to power the Principality Stadium during events.
The Project: Developed by an award winning designer, construction of 15 individually designed luxury 4 & 5 bed homes in Nottingham. Due to the site topography, almost all of the properties featured a semi-basement requiring waterproofing.
The Project: The construction of a detached, part retaining, new build function and events building for the Best Western Aston Hall Hotel near Sheffield.
The Project: Development of 14 3 & 4 bedroom detached luxury homes set within the picturesque Exe Valley near Tiverton, Devon. The development site significantly slopes from front to rear resulting in several of the plots being built into the hillside.
The Project: Barn conversion to B&B accommodation. The earth retaining elements of this barn conversion required specialist waterproofing to protect the finishes from water ingress from the ground.
The Project: To restore & convert the former Stuart Crystal Factory in Wordsley, Stourbridge to provide a mix of commercial & residential space. Specialist waterproofing works required during the restoration.
The Project: 7 award winning, luxury new build apartments complete with stunning sea views on the South Wales Heritage Coastline at Ogmore-by-Sea. Partially retaining, the […]
The Project: To waterproof a wine cellar within the prestigious Old Buildings Quadrangle of Hertford College, Oxford University.
